ASUS Slim Power Jack ROG Strix | 90° L-Shaped
Hurry! Only 970 Left in Stock!
Free Shipping: order $60 USD to US/HK/SG, order $90 USD to most countries!
1-Year global warranty
Professional tech support through chat or email
SlimQ ASUS Mini Port DC Charging Cable — 1.5 m | 90° L-Shaped | Up to 280W
Compatibility Restriction: Only for ASUS laptops originally supplied with an official ASUS 150W, 240W or 280W charger and equipped with a matching flat, rectangular Mini Port (Slim Power Jack) connector. Laptops with any other original charger wattage are not supported.
Important Compatibility Notice
This cable is designed only for select ASUS laptops originally supplied with a 150W, 240W, or 280W ASUS power adapter and equipped with the newer flat, rectangular ASUS Mini Port (Slim Power Jack) charging connector. ASUS laptops with any other original adapter wattage are not supported.
It is not compatible with ASUS laptops that use the older Φ6.0 × 3.7 mm round barrel DC charging port.
Connector types may vary within the same ASUS series depending on model year, region, and hardware configuration. Before purchasing, always verify:
- The shape of your laptop's charging port
- The wattage of the original ASUS power adapter
- The complete laptop model number
Connect a SlimQ Charger to Your ASUS Laptop
The SlimQ ASUS Mini Port DC Charging Cable features a DC 5.5 × 2.5 mm charger connector and a flat, rectangular ASUS Mini Port laptop connector.
It is designed to connect compatible SlimQ GaN chargers to select ASUS ROG, TUF Gaming, ProArt, and ROG Zephyrus laptops originally supplied with 150W, 240W, or 280W ASUS power adapters. Rated for up to 280W, it is suitable for gaming, content creation, and other demanding workloads. No drivers or software configuration are required.
Rated for Up to 280W
The cable supports power delivery of up to 280W. Laptop compatibility is limited to ASUS Mini Port models originally supplied with 150W, 240W, or 280W ASUS power adapters; a wattage below 280W alone does not establish compatibility. Actual charging power is limited by the lowest-rated component among:
- The charger's maximum DC output
- The laptop's power requirement
- The cable's 280W maximum rating

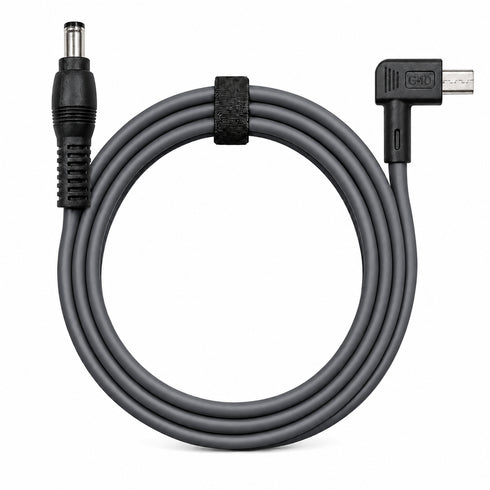

Flexible 1.5 m Cable Length
The 1.5-meter cable provides greater flexibility when arranging your charger and laptop on a desk, gaming station, or workstation. It helps reduce pulling and tension caused by cables that are too short.

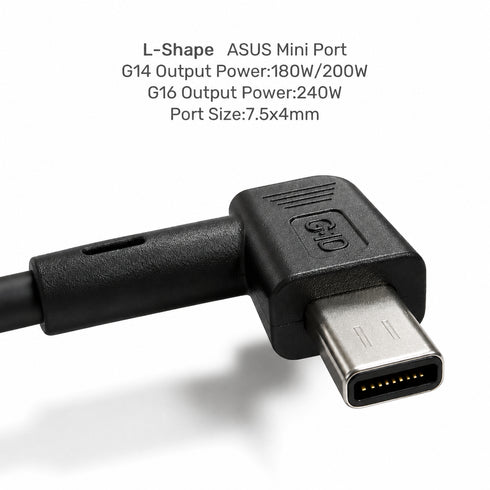

Low-Profile 90° L-Shaped Connector
The 90° L-shaped Mini Port connector keeps the cable closer to the side of your laptop, reducing unwanted protrusion and strain near the charging port. Ideal for compact desks, gaming setups, and other situations where a straight connector may take up too much space.
Plug and Play
No drivers or additional setup are required. Connect the DC 5.5 × 2.5 mm end to a compatible SlimQ charger, then connect the Mini Port end to your supported ASUS laptop. Verify the charger's output voltage, polarity, and available power before use.
Product Specifications
- Product: SlimQ ASUS Mini Port DC Charging Cable
- Maximum Rated Power: 280W
- Supported Original ASUS Adapter Wattages: 150W, 240W, and 280W only; other wattages are not supported
- Cable Length: 1.5 m / 150 cm

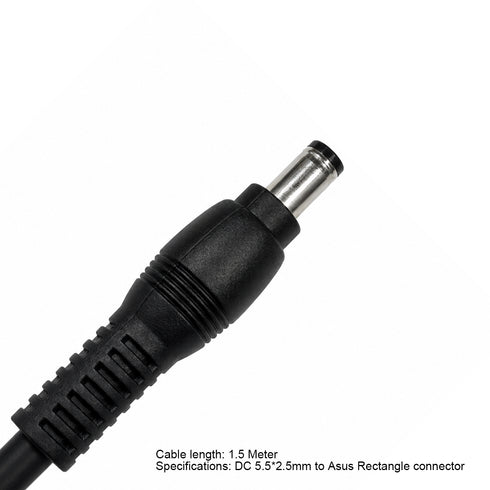

- Charger-Side Connector: DC 5.5 × 2.5 mm
- Laptop-Side Connector: ASUS Mini Port (Slim Power Jack), flat rectangular type
- Connector Orientation: 90° L-shaped
- Compatible Series: Select ASUS ROG, TUF Gaming, ProArt, and ROG Zephyrus laptops meeting the connector and original adapter wattage requirements above
- Compatible Chargers: Compatible SlimQ GaN chargers with matching output voltage, polarity, and sufficient power
- Net Weight: Approximately 50 g
- Country of Origin: China
Tested-Compatible ASUS Models
The following is a representative list and is not exhaustive. Only configurations originally supplied with a 150W, 240W, or 280W ASUS adapter and equipped with the matching Mini Port connector are supported. Connector type and power requirements may vary by region and hardware configuration. Always verify the physical connector and original charger specifications before purchasing.
150W Models
| Product Series | Model Year | Model Number |
|---|---|---|
| ASUS Gaming V16 | 2025 | V3607VJ |
| ASUS Gaming V16 | 2025 | V3607VU |
| ASUS Gaming V16 | 2025 | V3607VH |
| ASUS Gaming V16 | 2025 | V3607VM |
240W Models
| Product Series | Model Year | Model Number |
|---|---|---|
| ROG Zephyrus G16 | 2024 | GU605MI¹ |
| ROG Zephyrus G16 | 2024 | GU605MZ² |
| ROG Zephyrus G16 | 2024 | GU605MY² |
| ROG Zephyrus G16 | 2025 | GU605CR |
| ROG Zephyrus G16 | 2025 | GU605CW |
| ROG Zephyrus G16 | 2025 | GU605CX |
| TUF Gaming A16 | 2024 | FA608WV |
| TUF Gaming A16 | 2024 | FA608WI |
| TUF Gaming A16 | 2025 | FA608UP / FA608WP |
| TUF Gaming A16 | 2025 | FA608WM / FA608UM |
| TUF Gaming A16 | 2025 | FA608UH |
| ProArt P16 | 2025 | H7606WR |
| ProArt P16 | 2025 | H7606WX |
¹ Select regional configurations only; verify the complete SKU.
² Previously supplied information lists conflicting 240W and 280W ratings; original adapter wattage requires verification.
280W Models
| Product Series | Model Year | Model Number |
|---|---|---|
| TUF Gaming A16 | 2025 | FA608PP |
| TUF Gaming A16 | 2025 | FA608PM |
| TUF Gaming F16 | 2025 | FX608LP / FX608JP / FX608JPR |
| TUF Gaming F16 | 2025 | FX608LM / FX608JM / FX608JMR |
| ROG Strix G16 | 2025 | G615LM / G615JM / G615JMR |
| ROG Strix G16 | 2025 | G615LP / G615JPR |
| ROG Strix G16 | 2025 | G615LR |
| ROG Strix G18 | 2025 | G815LM / G815JMR |
| ROG Strix G18 | 2025 | G815LP / G815JPR |
| ROG Strix G18 | 2025 | G815LR |
Other variants within the same series may be compatible only if they use the same Mini Port connector and were originally supplied with a 150W, 240W, or 280W ASUS adapter. Contact us before purchasing if your exact model is not listed.
How to Confirm Compatibility
1. Check the Connector Shape
Your laptop must use the flat, rectangular Mini Port (Slim Power Jack) connector. This cable will not fit the older round barrel DC port.
2. Check the Original Charger Wattage
Read the output specifications printed on your original ASUS charger. Only ASUS laptops originally supplied with 150W, 240W, or 280W adapters are supported. Other original adapter wattages are not supported.
3. Verify the Complete Model Number
Do not rely only on the series name, such as "ROG" or "TUF," or on the year of purchase. Check the complete model number shown on the bottom label, packaging, or system information page.
If you are unsure, please send us:
- The complete laptop model number
- The voltage, current, and wattage shown on the original charger
- A clear photo of the laptop's charging port
We will help you confirm compatibility.
Frequently Asked Questions
Q: How can I tell whether my ASUS laptop uses the Mini Port connector?
A: The Mini Port is a flat, rectangular connector that is visibly different from the older round barrel DC jack. It is used on select ASUS ROG, TUF Gaming, ProArt, and ROG Zephyrus models released from 2024 onward. However, model year alone is not sufficient — always verify the connector shape, complete model number, and that the original ASUS adapter is rated at 150W, 240W, or 280W.
Q: Which original ASUS adapter wattages are supported?
A: Only 150W, 240W, and 280W. ASUS laptops with other original adapter wattages are not supported, even if the connector looks similar.
Q: What is the maximum wattage supported by this cable?
A: The cable is rated for up to 280W. Actual charging power is limited by the lowest rating among the charger, laptop, and cable. This maximum rating does not extend laptop compatibility beyond the supported original ASUS adapter wattages.
Q: Is it compatible with 2023 or earlier ASUS laptops?
A: This cable is intended for supported laptops equipped with the newer flat Mini Port connector. Most earlier ASUS laptops that use the older Φ6.0 × 3.7 mm round barrel connector are not compatible. Regardless of model year, compatibility should be confirmed by checking the connector shape, complete model number, and original charger wattage.
Q: Can I use this cable with a non-SlimQ charger?
A: Compatibility cannot be determined by the DC connector size alone. The charger's output voltage, polarity, power rating, and protection design must all match the laptop and cable requirements. For tested compatibility and safer operation, we recommend using a compatible SlimQ GaN charger.
Q: My model is not listed. Can I still use this cable?
A: It may be compatible only if your laptop uses the same Mini Port connector and was originally supplied with a 150W, 240W, or 280W ASUS adapter. Please send us your complete laptop model number and original charger specifications for confirmation.
If you are unsure which cable to choose, please send us your complete laptop model number, original charger specifications, and a clear photo of the charging port. We will be happy to help confirm compatibility.
