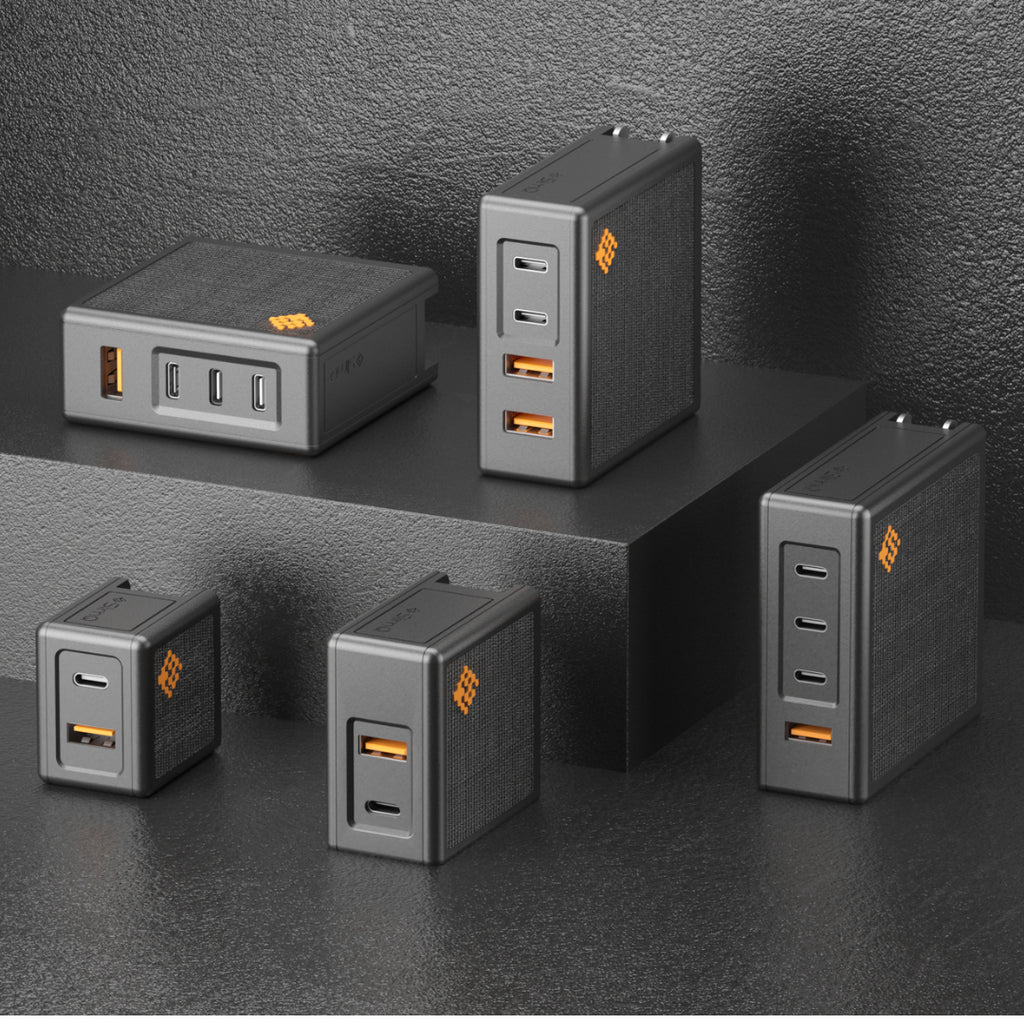

The Charger Revolution: Decoding the World of Multi-Port USB-C Chargers

Table of Contents

  1. Overview
  2. Why Multi-Port USB C Chargers Make More Sense Than Single Port USB C Chargers
  3. A Closer Look at Unexpected Behaviors of Multi-Port Chargers
  4. Unraveling the Inefficiencies of Multi-Port Charger Designs: A Deep Dive into PD Chip Limitations
  5. Decoding Charger Architectures: AHB vs. LLC+PFC
  6. The GaN Revolution in Multi-Port Chargers: A Game-Changer in Efficiency and Design
  7. The Art of Choosing the Right Multi-Port Charger: A Guided Approach


In the ever-evolving narrative of technology, USB-C has decisively taken the throne as the universal standard for charging our various devices. Even Apple’s iPhone 15 starts to use USB C for charging, for those who don’t know, iPhone has been the laggard for adopting USB C charging for years. It's a shift as significant as it is subtle - from the single-port, single-purpose chargers of yesteryears to today's multi-port maestros, adept at powering an array of gadgets simultaneously. This change mirrors our own digital transformation, where a single device no longer defines our tech repertoire. But here's the catch: USB C and Power Delivery (PD) are standards but how a charger behaves if it has multiple ports is not standard. Chargers with multiple ports, much like the companies that craft them, march to the beat of their own drum, each interpreting power management in its own way. So, what happens when you plug in multiple devices into these modern power hubs? Do they deliver what they promise when multiple devices to be charged at the same time? This article isn't just about understanding these multi-port wonders; it's a deep dive into their very soul, dissecting how they manage the intricate dance of power distribution across various ports.

Why Multi-Port USB C Chargers make more sense than single port USB C chargers

In the tapestry of modern technology, the emergence of multi-port USB-C chargers as mainstream is a story not just of convenience, but of necessity and innovation. It's a narrative deeply intertwined with our digital lifestyles, where each of us juggles a multitude of devices, each with its own thirst for power. But why did multi-port chargers become the norm? The answer lies as much in our habits as it does in the ingenious engineering behind these devices.

At their core, chargers are a tale of two halves: the AC to DC converter that transforms household power into something that can be applied directly to devices such as laptops and phones, and the DC to USB-C segment, tailored to regulate this power based on each device's unique appetite according to USB C specification. The bulk of a charger's real estate is consumed by the AC to DC conversion process. Adding more USB-C and USB ports doesn't significantly increase the size of the charger. It's a subtle yet significant revelation.

Then, there's the evolution of Power Delivery (PD) chips – the brains behind the efficient and adaptive power distribution of USB-C. As PD technology matured and proliferated, the costs associated with these chips have seen a steady decline. This cost-effective scalability makes the addition of extra ports a marginal expense, not a major cost center.

But let's not forget the real driving force: our own changing lifestyles. In a world where each of us is surrounded by a personal ecosystem of devices – from phones and tablets to laptops and wearables – the allure of a single charger that can adeptly power them all is not just attractive; it's almost irresistible. This isn't just a shift; it's a response to our collective craving for simplicity in an increasingly complex world.

A Closer Look at Unexpected Behaviors of multi-port chargers

In the bustling bazaar of multi-port USB-C chargers, a curious behavior pattern emerges, often catching users off guard. It's a subtle dance of power negotiation, often unseen yet critical to the charging experience. This is the story of what happens when you plug in or unplug a device from a multi-port charger - a tale that many users may find unexpectedly familiar.

Imagine this: you're using a multi-port charger, and you decide to unplug your tablet to take it with you. Innocuous, right? But at that moment, the charger enters a state of reset, renegotiating power allocation with the remaining connected devices. This isn't just a minor hiccup; it's a reset that momentarily halts the charging process for all devices. This behavior, common across many chargers in the market, has more profound implications than one might think.

Another case, let's delve into the intricacies of power allocation. Consider a 100W charger with four ports - three USB-C and one USB-A. In many models, when two USB-C ports are in use, the charger might split the power evenly - 50W to each port. (some manufacture will split power in different way like 60W and 40w for example, upon their own discretion). This fixed allocation, while straightforward and very easy to implement in a charger product, is riddled with inefficiencies. For instance, a MacBook Pro requiring 90W may find itself underpowered, even if the second device is a small phone drawing minimal power. Conversely, an over-allocation occurs if a port designated 50W is merely charging a phone, leading to underutilized capacity.

These two above-mentioned cases are related to static power distribution approach in charger design, though simpler to implement, is fundamentally flawed. It lacks the finesse and adaptability needed in our diverse and dynamic tech ecosystem. In contrast, chargers like SlimQ's 100W and 150W models embrace a dynamic approach. Their patented algorithm dynamically adjusts power distribution, ensuring that each connected device receives its maximum required power without disrupting others. This method only resorts to static allocation when the total power draw exceeds the charger's capacity, an unlikely scenario in everyday use.

Unraveling the Inefficiencies of Multi-Port Charger Designs: A Deep Dive into PD Chip Limitations

In the intricate world of multi-port USB-C chargers, the devil is often in the details, particularly when it comes to the internal workings of these devices. It's a realm where the choice of components can significantly dictate performance, often unbeknownst to the end user. This chapter of our journey delves into the nuances of Power Delivery (PD) chips and how their implementation can lead to unexpected inefficiencies.

Picture this: a 4-port, 100W USB-C charger. At first glance, it's a marvel of modern engineering, ready to cater to a variety of charging needs. However, beneath the surface lies a crucial decision point for manufacturers - the choice between using individual PD chips for each port independently or opting for chips that manage two ports each. This choice, while seemingly technical, has real-world implications.

Let's consider a charger using one PD chip to manage two ports. On paper, it's a cost-effective solution, but it comes with a limitation that's all too critical: the inability to handle different voltages across the two ports simultaneously. For example, if you have a charger where the 100W C1 port and a USB-A port are managed by a single PD chip, both ports are constrained to the same voltage level – typically 5V if both are in use. Normal people don’t understand its impact until they see their iPhone stopped charging when both ports are in use. (FYI: some iPhone models only work on 9V and 5V does not work for it anymore).

Now, why does this matter? In the real world, this limitation translates to an inability to optimally charge devices requiring different voltages. The charger, bound by its internal design, can only provide low-power, slow charging to both devices, regardless of their individual power capabilities or needs. This one-size-fits-all approach, while cost-effective, fails to harness the full potential of USB-C technology, particularly in scenarios where one device demands a higher voltage for fast charging.

Decoding Charger Architectures: AHB vs. LLC+PFC

In the intricate dance of charger technology, two distinct rhythms emerge, each with its own set of steps and nuances – the AHB (Asymmerical Half-Bridge) architecture versus the more contemporary LLC (Inductor-Inductor-Capacitor) resonant converter combined with PFC (Power Factor Correction). This comparison isn't just a technical deep-dive; it's a journey into the heart of what makes chargers tick, and how these differing architectures influence their performance.

The AHB architecture, a mainstay in many charger designs, is akin to a classic dance – familiar, reliable, and well-understood. It's built on the principles of straightforwardness and effectiveness. In charger technology, this translates to a design that's cost-effective and relatively simple to manufacture. However, like any classic dance, it has its limitations, particularly when it comes to efficiency at higher power levels and the adaptability required in today's multi-device charging landscape. So AHB is mostly used for single port charger.

Enter the LLC+PFC combination – a modern twist that adds layers of complexity and sophistication. The LLC resonant converter is known for its high efficiency, especially at higher power outputs. It operates by minimizing the energy loss typically seen in traditional converters, making it an ideal choice for high-wattage chargers. This efficiency isn't just about power conservation; it translates to less heat generation, a longer lifespan for the charger, and ultimately, a more sustainable charging solution.

But the real star in this architecture is the PFC component. Power Factor Correction is about harmonizing the charger’s electrical output with the power grid, ensuring that the energy drawn is used as effectively as possible. This not only improves the overall efficiency of the charger but also reduces electrical interference and contributes to a more stable and reliable power supply. By the way, PFC is required by many governments for chargers over 68W.

So, how do these architectures stack up against each other? The AHB, with its simplicity and cost-effectiveness, might be akin to a reliable classic dance step – perfect for straightforward, low to mid-power applications. The LLC+PFC, on the other hand, is like an intricate ballet, more complex but offering high efficiency, stability, and suitability for high-power devices.

Understanding these architectures is key to comprehending the capabilities and limitations of various chargers. It's a reminder that beneath the surface of our everyday gadgets lies a world of intricate design and engineering choices, each with its own impact on our digital experience.

The GaN Revolution in Multi-Port Chargers: A Game-Changer in Efficiency and Design

In the evolving landscape of charger technology, a new protagonist has emerged, reshaping the narrative with its groundbreaking attributes – Gallium Nitride, commonly known as GaN. This material is more than just a technological advancement; it's a paradigm shift in how we approach the design and efficiency of multi-port chargers.

GaN component has burst onto the scene like a breath of fresh air in a somewhat stagnant environment. For years, charger designs were constrained by the limitations of silicon-based components. These components, while effective, reached their physical and efficiency limits, particularly as we demanded more power in smaller forms. This is where GaN changes the story.

Imagine a material that allows for charger components to be not only smaller but also significantly more efficient. GaN's superior heat handling capabilities and higher frequency operation translate into chargers that are not just compact, but also more efficient and less prone to heating issues. This is especially crucial in multi-port chargers, where managing heat and power distribution becomes more complex with each added port.

But GaN's role extends beyond just miniaturization and heat management. In multi-port chargers, GaN technology enables a level of power density that was previously unattainable. This means being able to pack more power into a smaller form without the compromise of efficiency or safety. For the end-user, it's the realization of a dream – a powerful yet compact charger capable of handling multiple high-power devices simultaneously.

The adoption of GaN in multi-port chargers is reminiscent of a technological renaissance. It's not merely an incremental improvement; it's a leap forward, opening up possibilities that were once considered unfeasible. With GaN, chargers are becoming more than just utility devices; they are powerful, efficient, and an essential part of our increasingly mobile and connected lives.

In embracing GaN, we're not just witnessing a change in materials; we're partaking in a transformation of the charging experience itself. It's a journey from the bulky, heat-prone chargers of the past to sleek, efficient, and powerful devices that align seamlessly with our modern lifestyle.

The Art of Choosing the Right Multi-Port Charger: A Guided Approach

In the diverse world of multi-port USB-C chargers, making the right choice is akin to finding the perfect melody in a symphony of options. It's not just about picking a charger; it's about understanding the nuances that define its performance and suitability to your needs. Let’s walk through the critical factors to consider, ensuring your choice not only meets but exceeds your charging expectations.

Scrutinize the Power Distribution Algorithm: The heart of a multi-port charger lies in its power allocation mechanism. Look beyond the glossy exterior and marketing jargon; delve into the product descriptions to understand how the charger manages power across its ports. Opt for a charger with a dynamic power allocation algorithm rather than a static one. The dynamic approach ensures that each connected device receives the appropriate amount of power without unnecessary limitations or inefficiencies, thus safeguarding your device’s battery life and optimizing charging efficiency.

Understand the Power Distribution Table: For chargers employing static power allocation, it's crucial to decode the power distribution table. This table is a map of how power is divided among the ports. Ensure that this allocation aligns with the power needs of your devices. A mismatch here could lead to underpowered devices or inefficient charging.

Seek Out LLC+PFC Architecture: When delving into the technicalities, prioritize chargers that employ LLC+PFC architecture. This modern design approach speaks volumes about the charger's efficiency and reliability. Don't hesitate to reach out to the manufacturer for confirmation on this aspect. A charger built on this architecture not only promises efficiency but also aligns with future technological standards.

GaN is Your Friend: In the realm of multi-port chargers, GaN technology is more than just a buzzword; it's a hallmark of modernity and efficiency. While not an absolute necessity, GaN-based chargers generally offer a significant advantage, particularly in terms of size, heat management, and overall efficiency. Chargers that eschew GaN yet claim to be compact might raise red flags regarding quality issues like overheating. GaN technology, while not the sole determinant of a charger’s worth, is a strong indicator of a forward-thinking, quality-focused design.

Choosing the right multi-port charger isn’t just about picking a device that can charge multiple gadgets. It’s about aligning with a charger that resonates with your lifestyle, understands your devices’ needs, and adapts to the ever-changing landscape of technology. It's about making an informed choice that blends power, efficiency, and innovation in one compact package. When it comes to multiple port USB C chargers, you want to have the one 1. Does not do reset/recalibration when a device is plugged into or unplugged. 2. Made with LLC+PFC architecture which is the most reliable, efficient and global application. 3. Made from GaN which means efficiency and lower temperature.
